Installed in no time at all using the plug & play principle and without the need to report to the network operator or tax office.
E-bike solar charging station 120 W
With the mobile solar station, you can turn your garden shed, bike cellar or camper into your e-bike solar charging station and ride the entire cycling season using only solar energy. Save yourself the hassle of charging and use the SunLight charger to charge your e-bike battery directly from the solar panel in the most efficient way possible, even without an existing power connection. You also have maximum flexibility when bikepacking or travelling with a camper, as the unique SunLight e-bike charger enables safe charging with up to 3 A via solar modules up to 30 V, the 12 V on-board power supply and the normal socket. In Germany, more than 100 full battery charges per year are possible without any problems thanks to MPP tracking and powerful SunPower cells. We are guaranteed to have the right mounting option for your pitch and, in the case of stand-alone solar systems, there is no need to go to the authorities for installation.

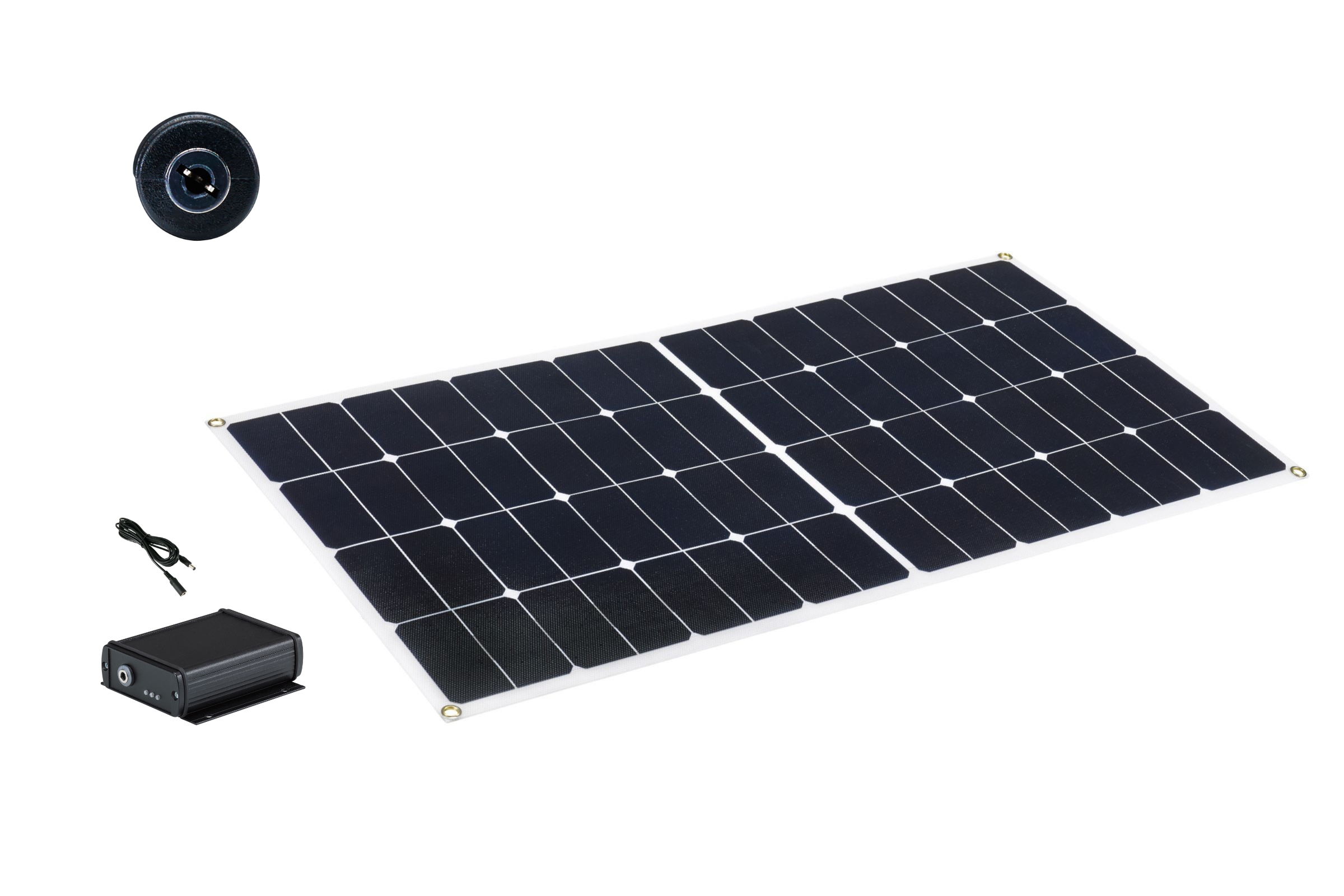

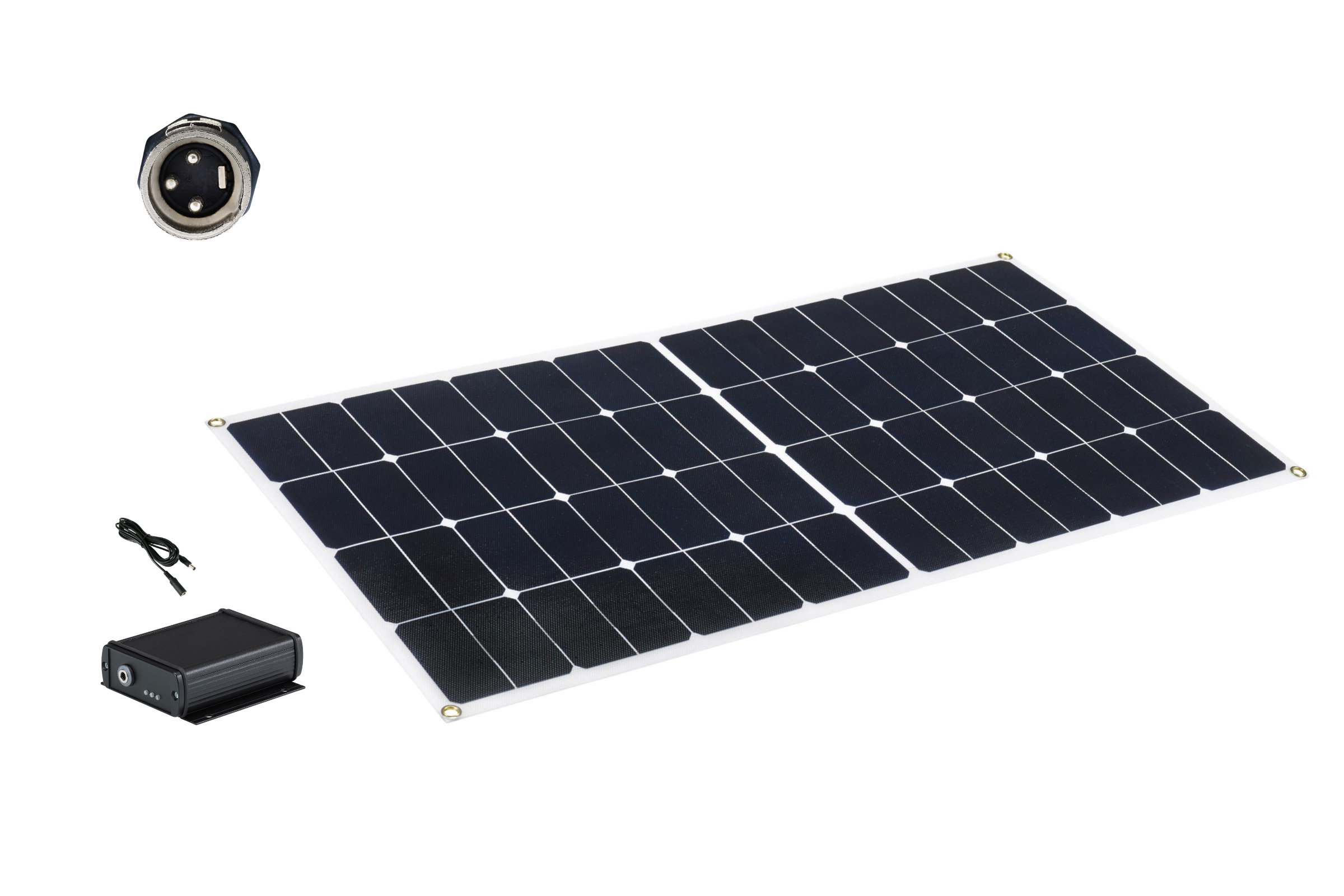

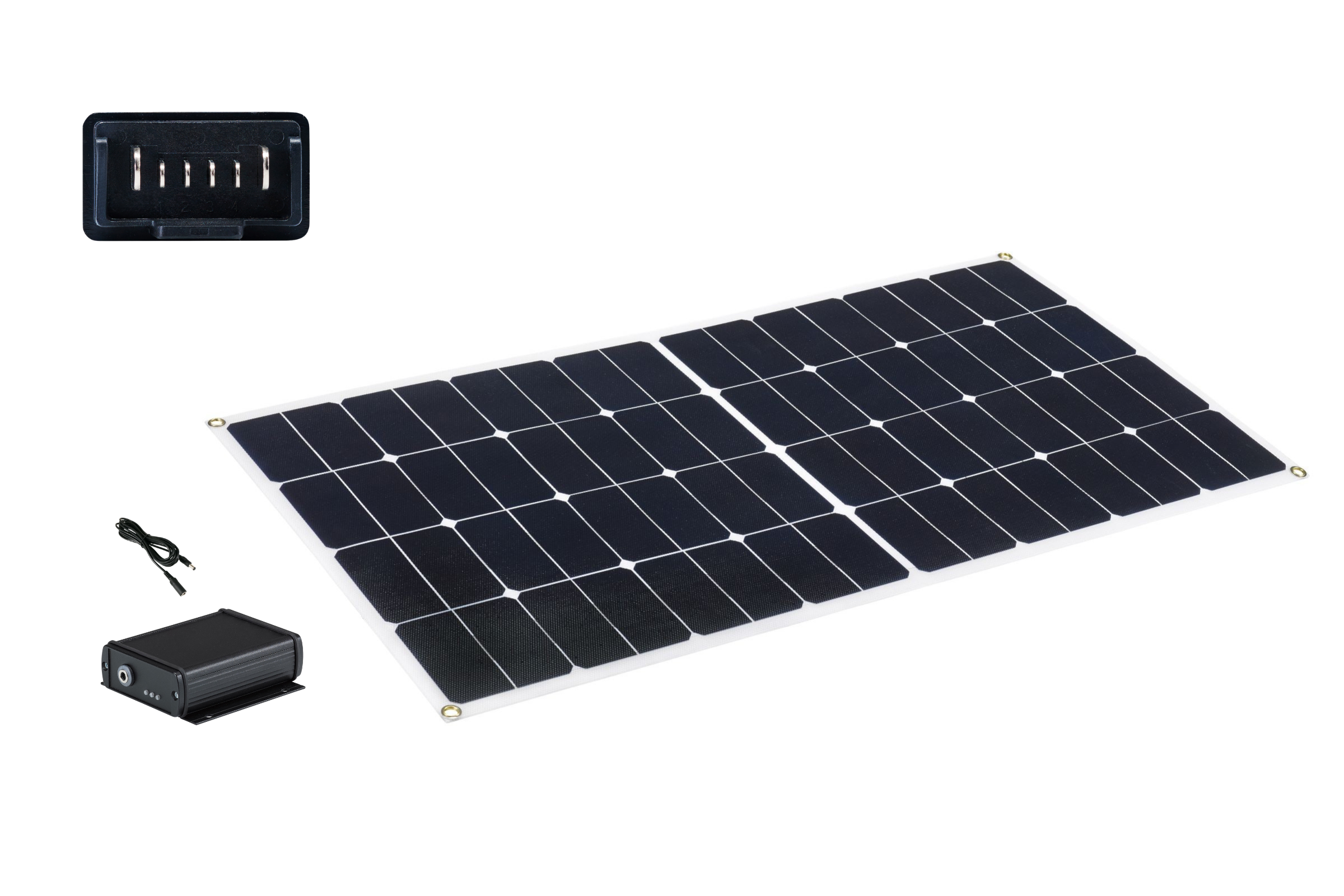

Scope of delivery: 120 W Sun-Power solar module (1060*540*3mm), SunLight charger, extension cable (3m) and individual mounting option
WEEE-Reg.- No. DE 67943500

The incomparable e-bike charger
The waterproof charger is specially designed to store up to 3 A / 110 W of solar energy directly, efficiently and safely in your e-bike battery. The intelligent device always keeps the charging voltage in the right range, even with different power levels, and is therefore extremely battery-friendly. To ensure safety, it is equipped with various protective functions, such as overload, overcurrent, short-circuit protection and control of the final charging voltage. In order to always get the most energy from the solar module, we have integrated MPP tracking and efficient voltage converters minimize self-consumption. In addition to the option of charging via solar, you can also charge your e-bike using an adapter at the 12V vehicle socket in the car and at a normal socket. This means you always have a charging option on your tours. Durability is extremely important to us, which is why we only use the highest quality components and coordinated heat management.
DC IN via 5.5 x 2.1 mm socket: 10.5 V to 30 V
DC OUT via XLR4: Max. 41.5 V; Maximum 110 W / 3 A
State-of-the-art charging technology with MPP tracking
Connection via solar module, 12V vehicle adapter cable and 230V power supply (optional)
Dimensions 120 x 82 x 32mm plus adapter

Powerful SunPower solar cells
The solar panel consists of industry-leading Sunpower cells with an efficiency of 24%. The cells not only produce the highest yield, but are also corrosion-resistant and extremely flexible. Thanks to the ETFE layer, our solar panel can withstand all weather conditions. To guarantee quality, we use high-quality components, certified according to the latest standards.
Frequently Asked Questions
-
If the sun hits the solar panel, your e-bike will charge while you ride, but with less output than if the solar panel is perfectly aligned. In addition, the charging port on your e-bike must be in a suitable location so that the cable does not bother you while you ride or block the pedals. Charging while you ride does not damage the battery, as the electricity seeks the easiest path and is fed directly into the motor when there is a load.
-
Our universal charger was specially developed for e-bike batteries and the individual manufacturers, such as Bosch, Yamaha, etc. are individually integrated after extensive stress tests. This means that the SunLight charger has exactly the same safe charging quality as the original charger and the battery does not lose any capacity like with cheap alternatives. The development of the charger and the integration is supervised by long-standing experts in charging technology from Germany. To guarantee battery-friendly charging, the charge is adjusted depending on the battery voltage and the final voltage of the charger is 41.5V to avoid overcharging. The fluctuating charging power when charging via solar also has no harmful effect, as the charging voltage is kept constant and a lower charging power is even more battery-friendly than, for example, with a 6A charger.
-
With the charger you can also charge your e-bike using a normal socket or even a car socket. This means you always have a charging option and nothing stops you from going on your tours.
