Solarride 120 WP
The 120 WP Range Edition opens up completely new possibilities for you, from long daily trips far beyond your previous radius to multi-day tours into untouched nature. Experience what it means to be truly independent.
Charging a 500WH battery per hour when aligned in a stationary position
 |
 |
 |
20% |
12% |
4% |
Charging a 500WH battery per hour while riding
|
|
|
10% |
6% |
2% |
At a glance:
No disruption while riding Battery-friendly and safe thanks to protective functions Installed and connected in under 5 minutes - Plug & Play Charge your e-bike battery directly without losses using MPP tracking Triple charging option: solar, 12V vehicle socket and mains socket
Your e-bike or cargo e-bike is compatible if:
- Your e-bike has a lithium-ion battery with 36 V battery voltage (found on your battery or in the user manual)
- You can find your charging plug in our adapter cables (click here) to connect the SunLight charger to your e-bike
If you are unsure, just contact us by email at "info@solarride.de" or by phone at 07345-5064394. We will be happy to help you.
The incomparable e-bike charger
The waterproof charger is specially designed to store up to 3.3 A / 120 W of solar energy directly, efficiently and safely in your e-bike battery. The intelligent device always keeps the charging voltage in the right range, even with different power levels, and is therefore extremely battery-friendly. To guarantee safety, it is equipped with various protective functions, such as overload, overcurrent, short-circuit protection and control of the final charging voltage. In order to always get the most energy from the solar module, we have integrated MPP tracking and efficient voltage converters minimize self-consumption. In addition to the option of charging via solar, you can also charge your e-bike using an adapter at the 12V vehicle socket in the car and at the normal socket. This means you always have a charging option on your tours. Durability is extremely important to us, which is why we only use the highest quality components and coordinated heat management. You can attach the charger in no time at all with the clamp arm, with a fall rate of 0% in the test.
- DC IN via 5.5 x 2.1 mm socket: 10.5 V to 30 V, maximum 120W
- DC OUT via XLR4: 37V, Maximum 120W / 3.3A
- State-of-the-art charging technology with MPP tracking
- Connection via solar module, 12V vehicle adapter cable and 230V power supply (optional)
- Dimensions 82 x 32 x 100 mm plus adapter
stable, durable and made for travel

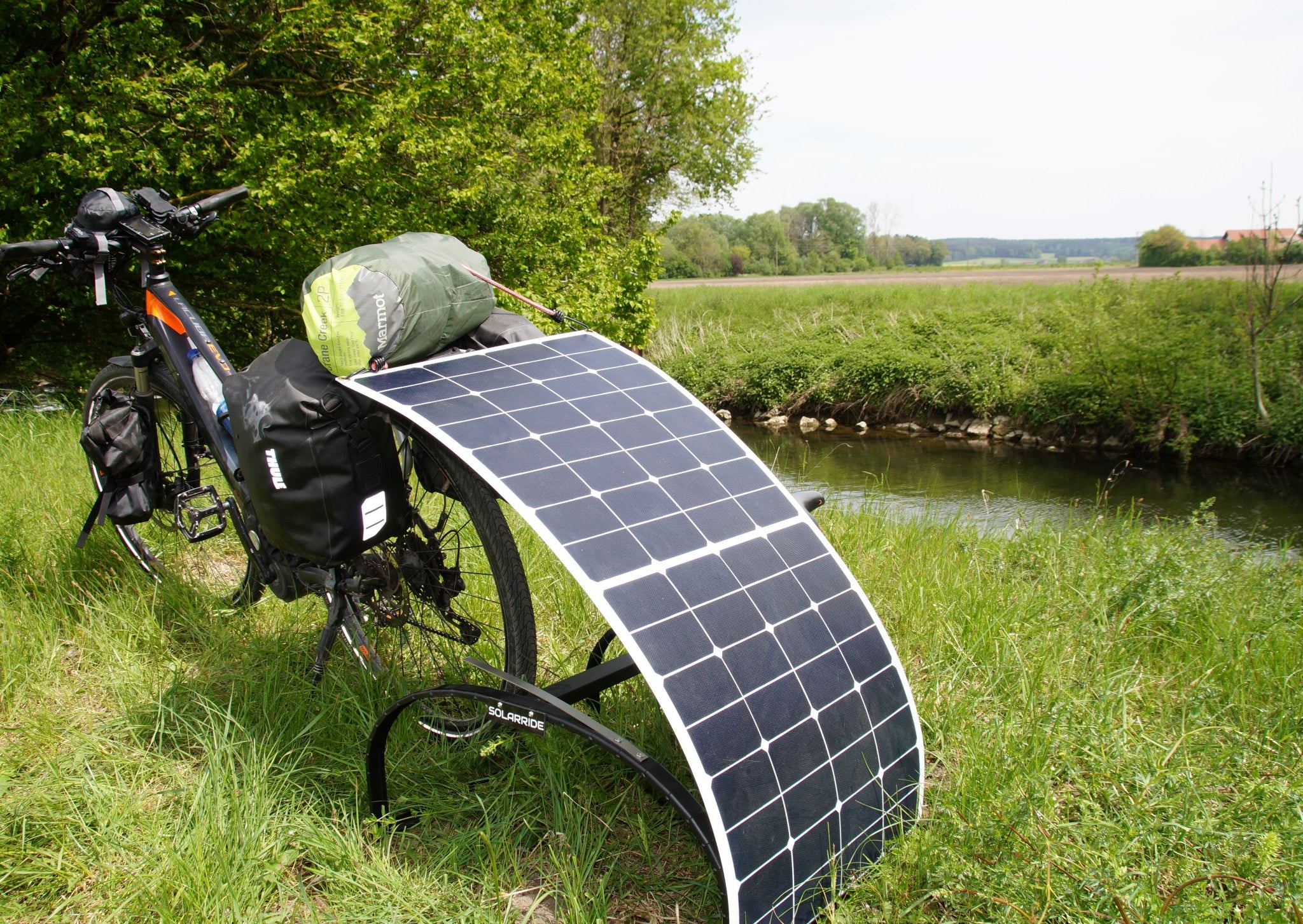

Our 120 WP version is made for every adventure, no matter what the terrain. To ensure a secure hold, we use a lock with four stainless steel screws and an extremely stable frame, made in Germany. The module is divided into two 60W modules connected in parallel to ensure as little loss of performance as possible in the event of partial shading. In addition, the robust solar cells from SunPower are split in half so that the bending has no effect on efficiency. During the ride, a spring steel keeps the module under tension and thus protects the cells from performance degradation. The solar module can be completely detached from the frame using the 4 handle screws in order to receive full power during breaks or to equip the garden shed at home with the module when there is no tour planned. Despite the enormous power, you hardly notice the additional weight of 6 kg due to the weight distribution and can easily attach your saddlebags.
Everything has been thought of

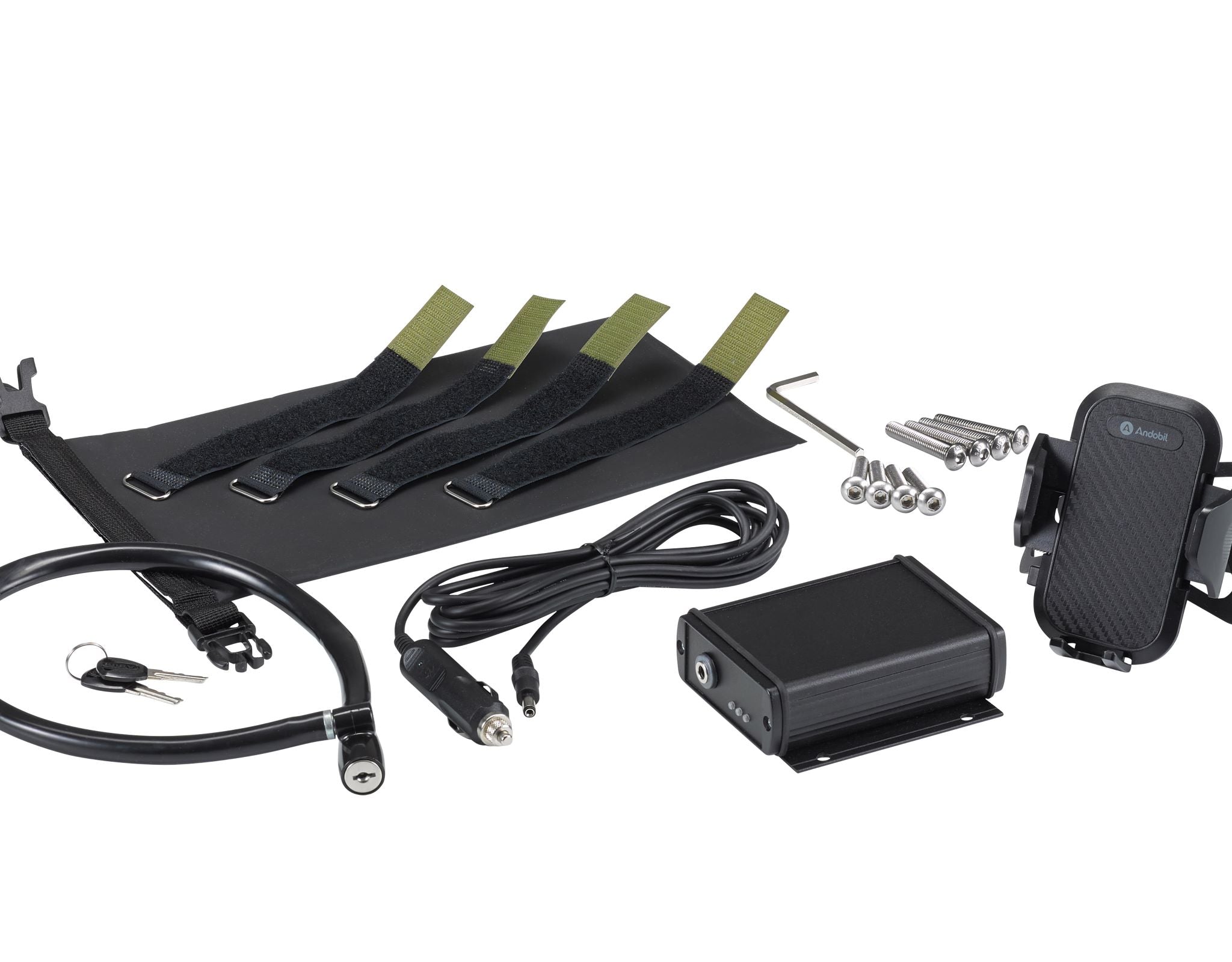

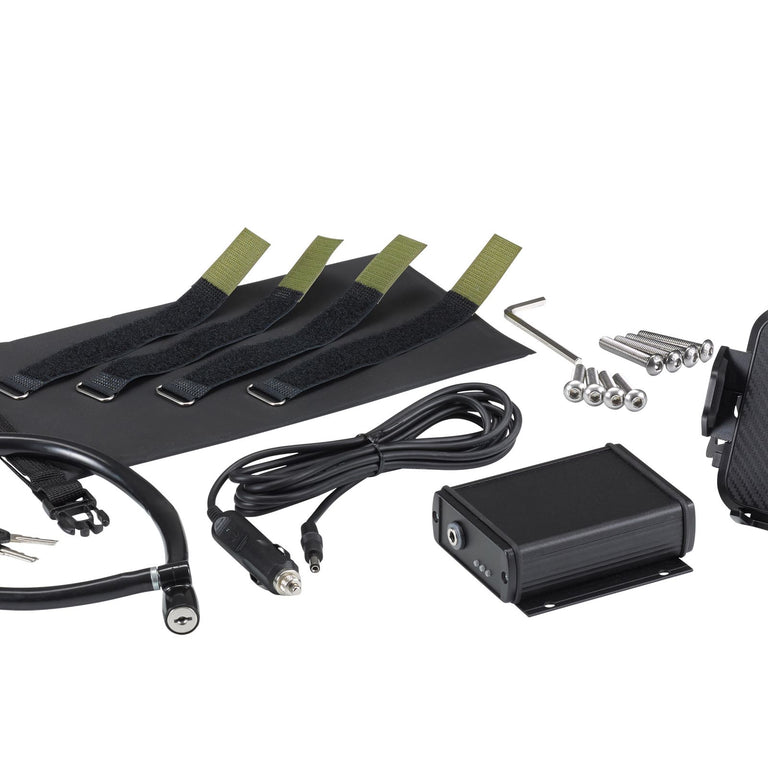

It was important to us that you can enjoy your new freedom without any hassle. That's why the Solarride has a plug & play principle with easy attachment of the charger using the clamp arm holder. So that you are prepared for all eventualities, the delivery also includes a lock, a waterproof packing bag and an adapter cable for charging from the 12V on-board socket. We recommend an appropriate power supply for charging from the socket as an option.
Powerful SunPower solar cells
The solar panel consists of industry-leading Sunpower cells with an efficiency of 24%. The cells not only produce the highest yield, but are also corrosion-resistant and extremely flexible. Thanks to the ETFE layer, our solar panel can withstand all weather conditions. To guarantee quality, we use high-quality components, certified according to the latest standards.
adapter cable
