E-Bike solarcharger SunLight

Name: E-Bike solarcharger SunLight
Brand: Solarride
SKU: 0018
Price: 234.99 EUR
Availability: OutOfStock

€234,99

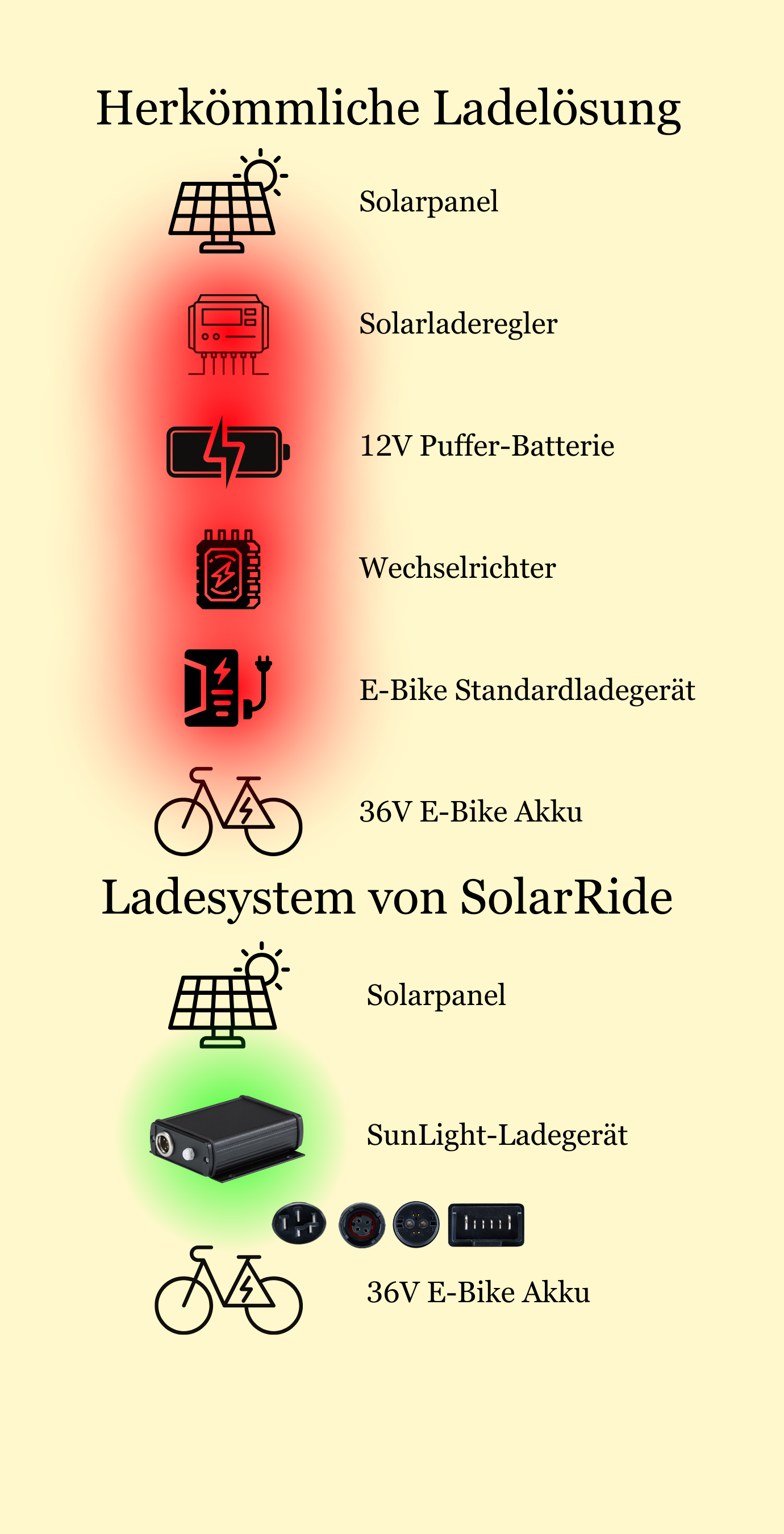

The SunLight e-bike solar charger is the perfect universal charger for e-bikes for more flexibility, performance and battery life. The device has been developed with 50 years of electronics experience for the direct, highly efficient and safe storage of solar energy in 36V e-bike batteries (Li-Ion) and charges the e-bike with a unique maximum charging power of 120W / 3.3 A. This avoids high conversion losses due to buffer batteries and thanks to the maximum power point tracking, the charger always gets the most out of the solar module. The high efficiency gain is particularly important for free camping or self-sufficient systems, as any wasted energy is severely limited here. "External" solar modules can also be connected as long as the charging voltage does not exceed 30 V. Because the intelligent device keeps the charging voltage constant even when the power changes, the charging is extremely battery-friendly. Minimal input currents can be processed and therefore charging is possible even when it is cloudy. The housing is made of aluminum, waterproof according to protection class IP 65 and therefore suitable for outdoor use.

In addition to solar energy, there is also the option of charging via an adapter cable at the mains socket or via the vehicle socket. For charging via the 12V on-board network, a deep discharge protection has been integrated so that the starter or living area battery is never discharged too much. This means you don't have to worry about the supply on your tours, as you will always find a way to charge your e-bike, be it plan A, B or C.

Our adapter cables can be used to charge many batteries from renowned manufacturers such as Bosch, Yamaha, Specialized and Brose. The SunLight charger automatically recognizes the e-bike battery and therefore different batteries can be charged with the same device using the adapter cables .

Your e-bike or cargo e-bike is compatible if:

Your e-bike has a lithium-ion battery with 36 V battery voltage (found on your battery or in the user manual)
You can find your charging plug in our adapter cables (click here) to connect the SunLight charger to your e-bike

If you are unsure, just contact us by email at "info@solarride.de" or by phone at 07345-5064394. We will be happy to help you.

DC IN via 5.5 x 2.1 mm socket: 10.5 V to 30 V, maximum 120 W
DC OUT via XLR4: 37V, Maximum 120W, 3.3A
State-of-the-art charging technology with MPP tracking

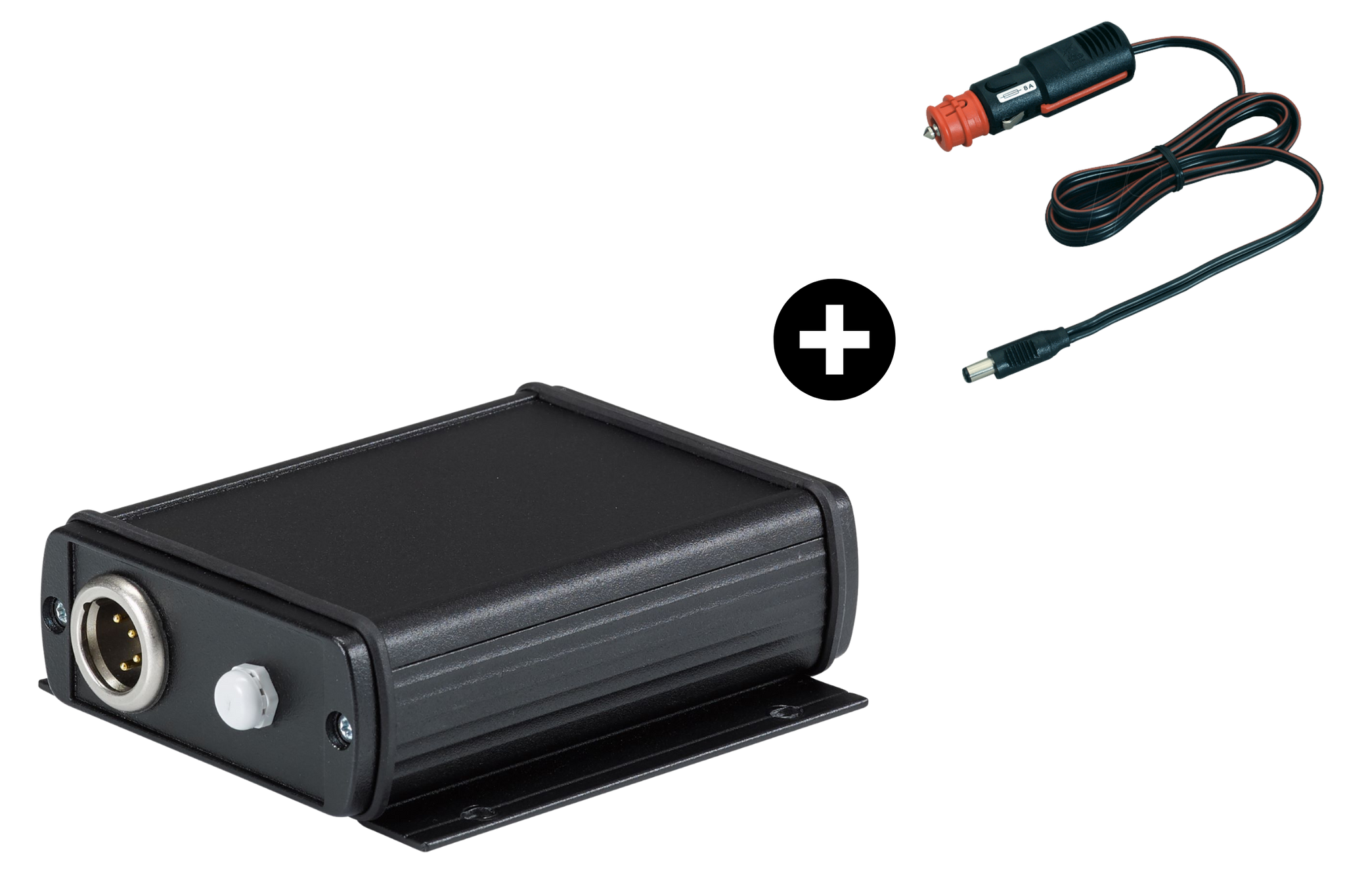

Connection via solar module, 12V vehicle adapter cable and 230V power supply (optional)
Dimensions 82 x 32 x 100 mm plus adapter

Developed and produced with the highest quality in Germany

Ein geschlossenes System

In der Zukunft können wir nur so viele Ressourcen verwenden und so viel Energie verbrauchen, wie unsere Erde nachhaltig hergibt. Wir müssen ein Gleichgewicht herstellen. Diese Philosophie liegt auch hinter unseren Produkten: Du machst dein E-Bike zum rollenden Speicher und verwendest dafür ressourcenschonend den bereits produzierten Akku. Die Energie, die du für deine Fortbewegung benötigst, kommt direkt aus der Sonne. Damit bist du energieneutral unterwegs und entlastest zusätzlich das Stromnetz. So können wir uns für immer fortbewegen.

secure

Control of the final charging voltage for long battery life

Deep discharge protection of the vehicle battery

Protection against overtemperature, overcurrent, overload and short circuit at the input (replacement of the fuse necessary)

Powerful

Safe charging with up to 3.3 A / 120 W

MPP tracking for maximum solar yield

Highly efficient voltage converters for low self-consumption

Flexibel

Ladung über Solarmodule bis 30 V Eingangsspannung

Ladung über die 12 V - KFZ Steckdose mit Tiefentladeschutz der KFZ-Batterie

Ladung über die Steckdose

Praktisch

Wasserdichtes Aluminiumgehäuse nach IP 65

Kompakt mit Abmessungen von 120 x 82 x 32 mm

Äußerst geringes Gewicht von 350 g

Plan A, B or C - Always a charging option!

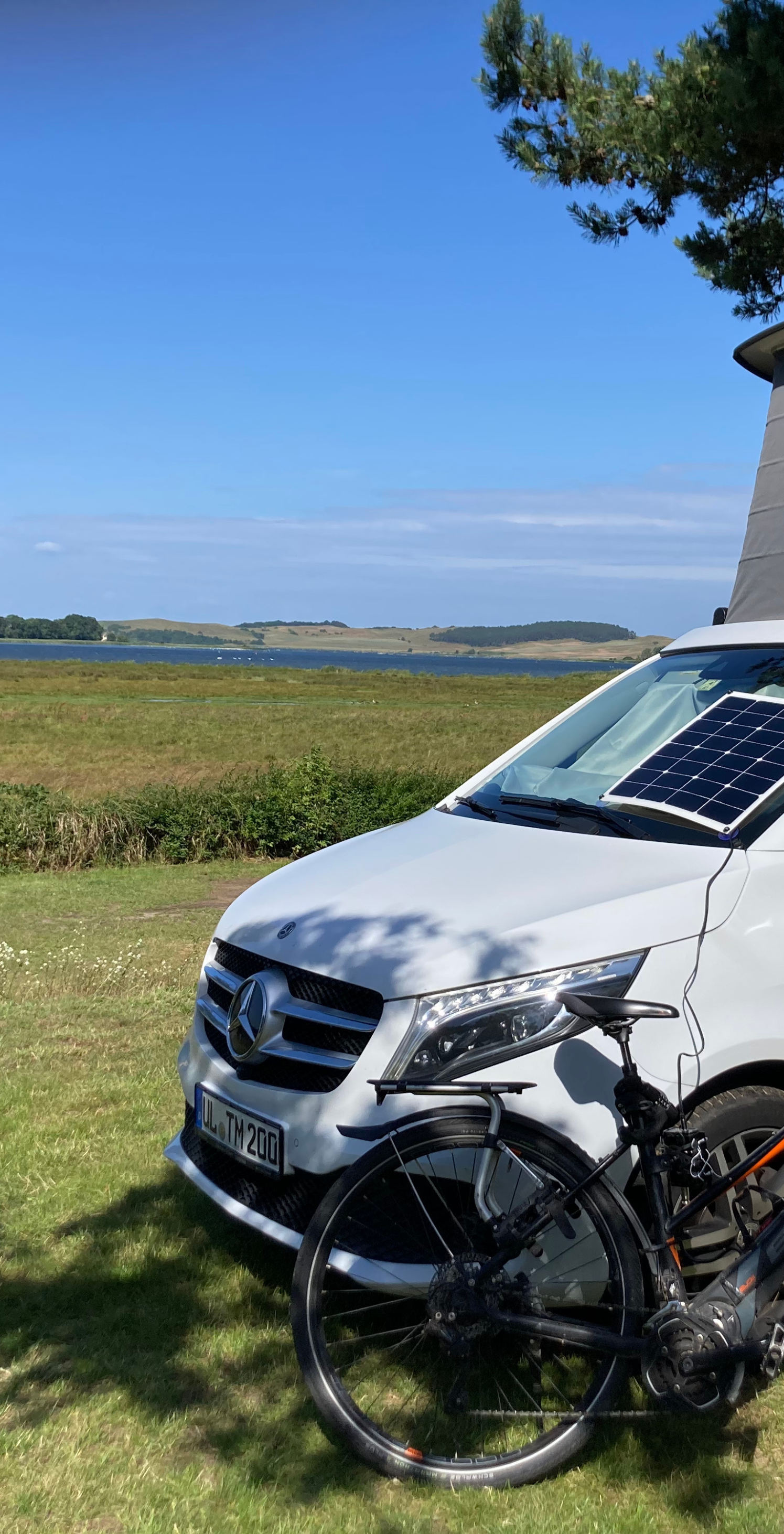

If the sun hits the solar panel, your e-bike will charge while you ride, but with less output than if the solar panel is perfectly aligned. In addition, the charging port on your e-bike must be in a suitable place so that the cable does not bother you while you ride or block the pedals. Charging while you ride does not damage the battery, as the electricity seeks the easiest path and is fed directly into the motor when there is a load.

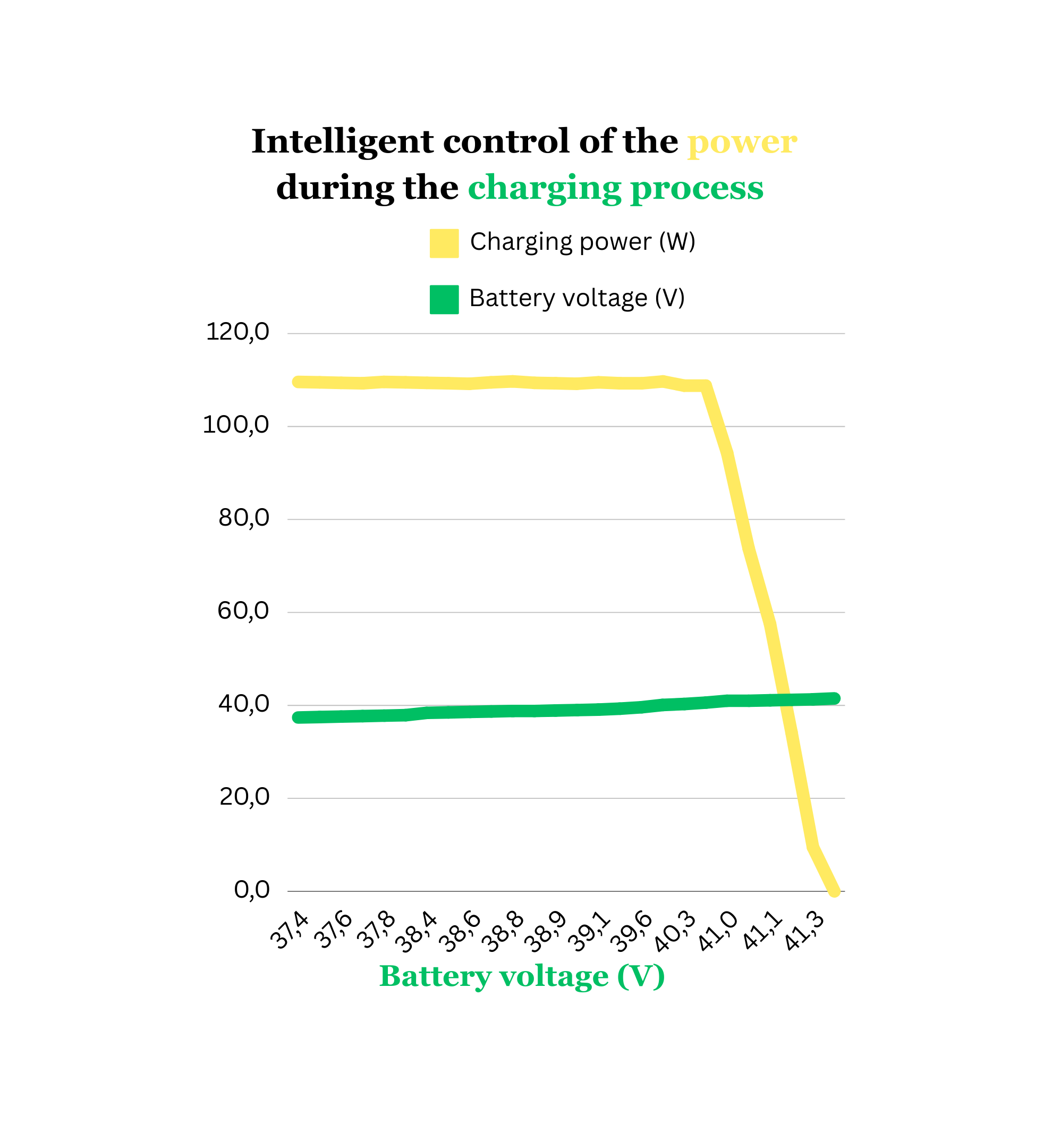

Our universal charger was specially developed for e-bike batteries and the individual manufacturers, such as Bosch, Yamaha, etc. are individually integrated after extensive stress tests. This means that the SunLight charger has exactly the same safe charging quality as the original charger and the battery does not lose any capacity like with cheap alternatives. The development of the charger and the integration is supervised by long-standing experts in charging technology from Germany. To guarantee battery-friendly charging, the charge is adjusted depending on the battery voltage and the final voltage of the charger is 41.5V to avoid overcharging. The fluctuating charging power when charging via solar also has no harmful effect, as the charging voltage is kept constant and a lower charging power is even more battery-friendly than, for example, with a 6A charger.
